The problem we identified
IoT security is a discipline of its own, not something your product team should have to build from scratch.
Built by Ermit
The Ermit Secure IoT Module handles connectivity security as a dedicated hardware layer so your host device stays simple, your cloud stays yours, and your team stays focused on the product. Device identity and cryptographic secrets are protected by a dedicated hardware secure element, never exposed in software. The module works with your existing cloud infrastructure, manages certificates autonomously, and ensures firmware and data are never lost in the field without locking you into a proprietary platform.
Into the product
Most companies shipping connected products are not IoT companies. They know their domain, but connectivity security is a different discipline. The predictable result: shared keys, expired certificates, exposed devices. What if all of that complexity lived in a single hardware module instead?

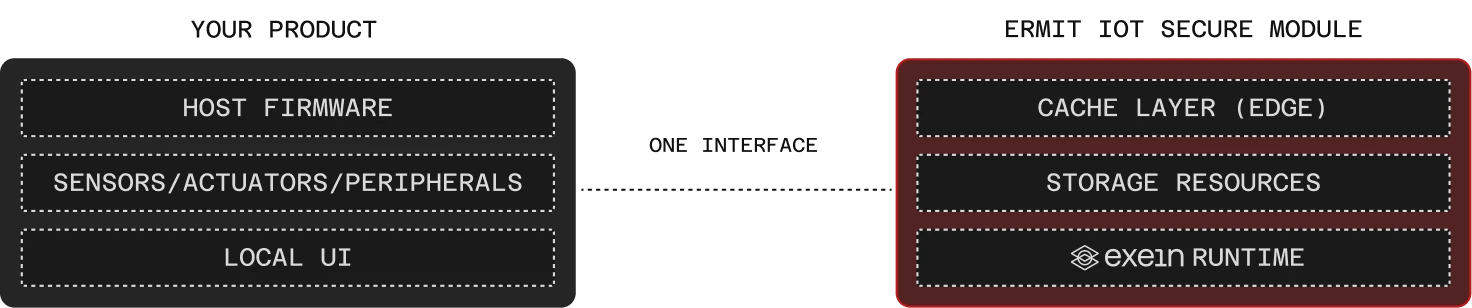

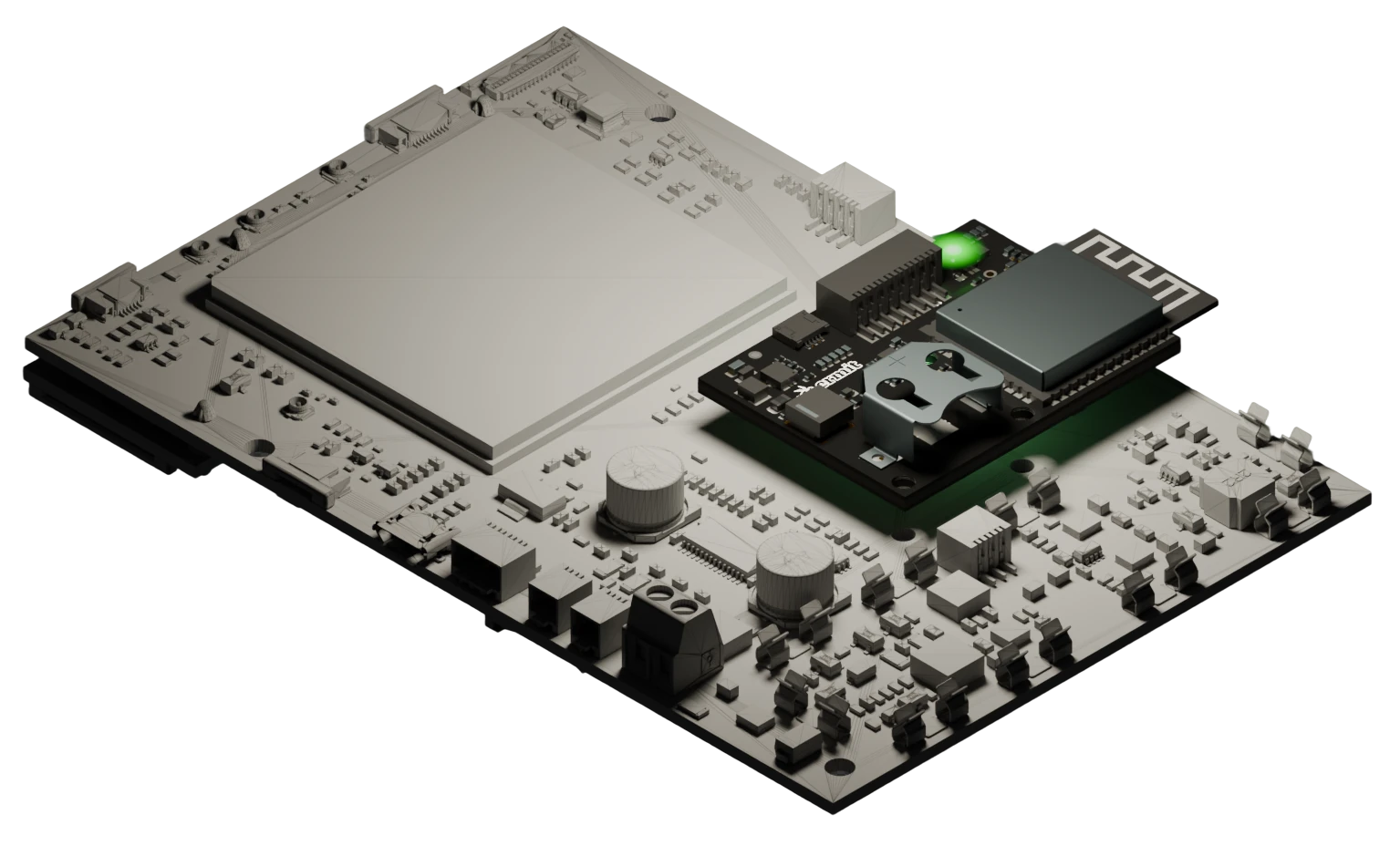

Ermit Secure IoT Module is a dedicated hardware layer that handles connectivity security for connected products. It integrates into a new or existing product design as a separate physical module, sitting between the host device and the cloud over a serial interface.

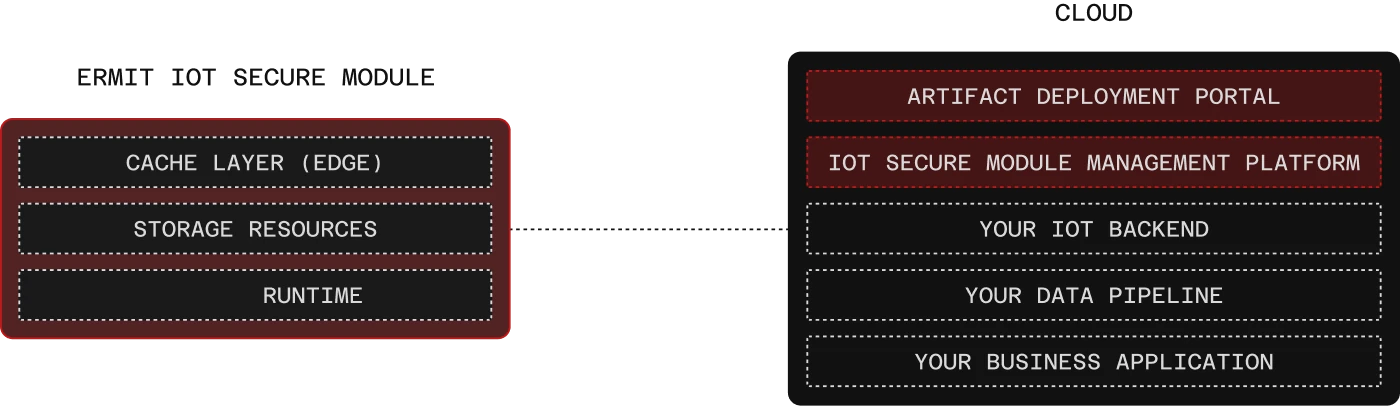

The host communicates using simple commands; everything else, certificate management, mutual TLS authentication, OTA update management, telemetry forwarding, and event logging, is handled entirely by the module. Cloud compatibility covers Azure IoT Hub and AWS IoT Core; the customer retains full ownership and control of their cloud infrastructure.
Device identity and cryptographic material are stored in an NXP SE051 secure element, isolated from software. Certificates are provisioned and monitored. Firmware updates are delivered by Ermit. Encrypted SD storage caches update files, telemetry and events during power loss. Exein Runtime provides continuous behavioral analysis. The architecture targets CRA, RED and ETSI EN 303 645 compliance, with built-in documentation evidence.

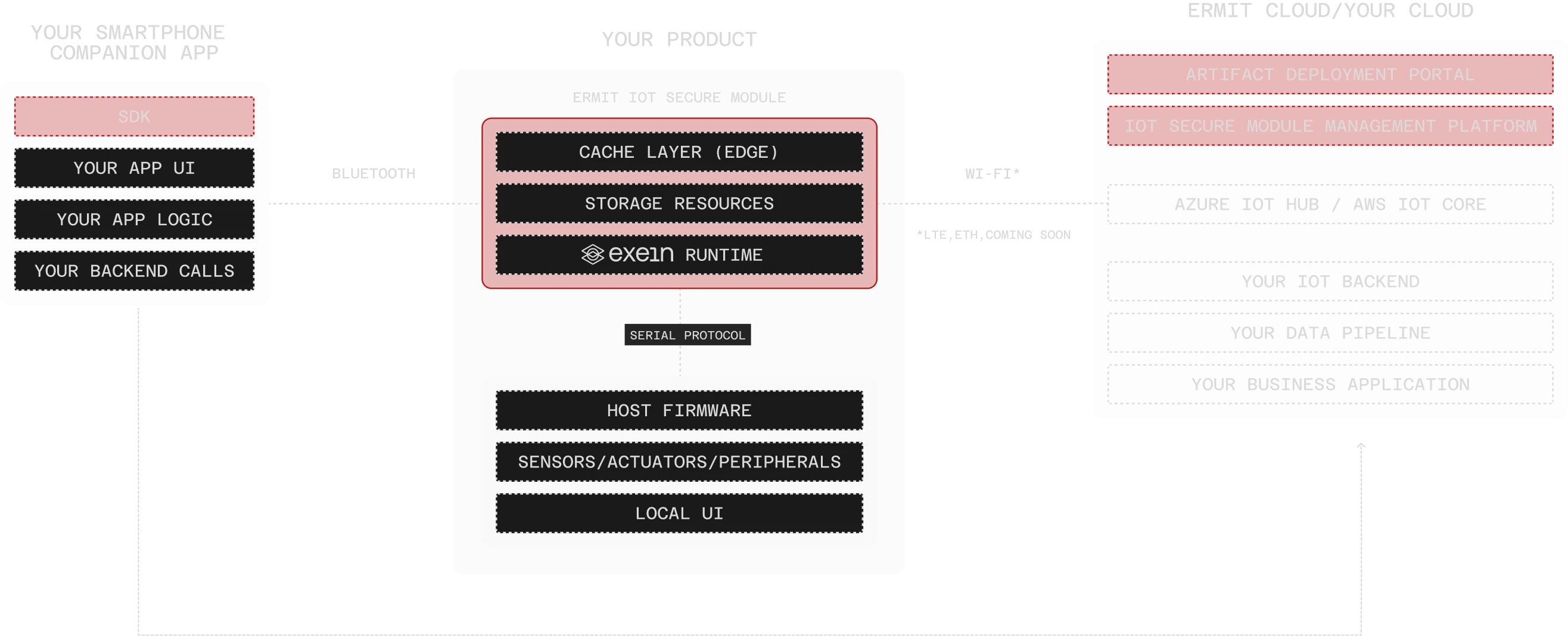

How it fits into your product.
The module stays updated, certificates don't expire silently, and data is never lost offline. Your product remains secure for its entire lifecycle, not just at shipping.process, so you have one team accountable for the whole product.
Every private key is generated on-device and never leaves the secure element. Authentication towards cloud services happens through mutual TLS, with certificates managed autonomously by the module - no manual provisioning, no shared secrets across devices.
An encrypted SD card provides local storage for firmware artifacts and resources, decoupling cloud availability from field operations. Combined with store-and-forward buffering, the module ensures that data and updates are never lost during connectivity gaps - everything queues locally and syncs when the network is available. An independent RTC with battery backup maintains accurate timekeeping across power cycles, providing a trusted time source for certificate validation and log timestamping - regardless of network state. The module also exposes expansion connectors, allowing additional field buses and interfaces - Ethernet, LTE, Modbus, CAN, RS-485 - to be added as plug-in boards without redesigning the base hardware.

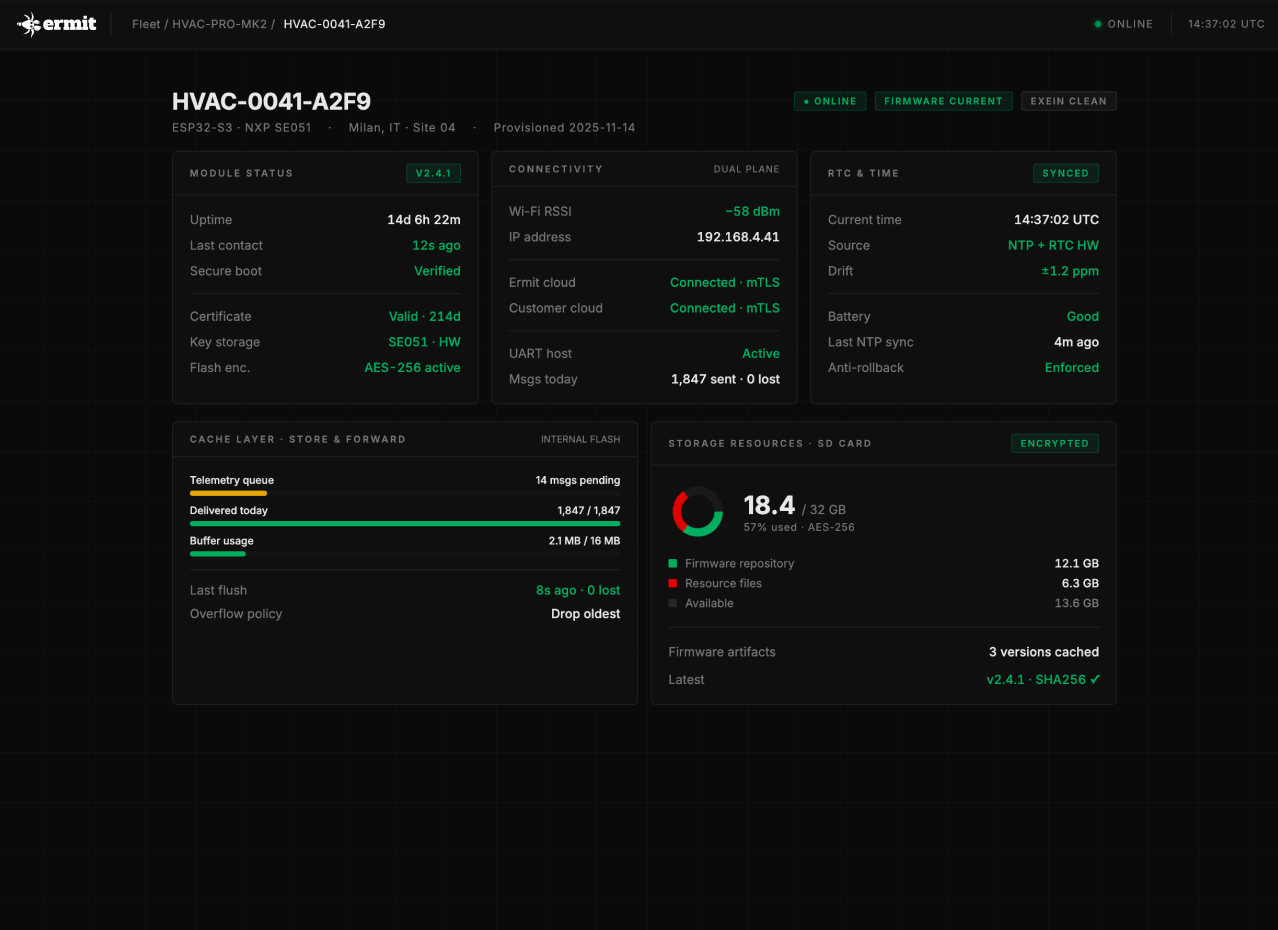

The Artifact Deployment Portal and IoT Secure Module Management Portal form the cloud backbone of the system. The first handles packaging, versioning, and distribution of firmware artifacts and resource files to your fleet - with release management, rollout policies, and deployment tracking built in. The second maintains a dedicated management channel to every deployed module, used exclusively for autonomous module updates, security patches, and platform-level health monitoring, completely separate from your application data. Both portals can be operated by Ermit as a managed service, or deployed and managed directly within your own infrastructure.
The Companion App SDK provides a ready-to-integrate mobile library for iOS and Android, covering device onboarding, Wi-Fi credential provisioning, and field diagnostics - available as an SDK to embed directly into your own app.
Integrated Exein Runtime runs directly on the module, providing continuous behavioral monitoring, anomaly detection, and incident reporting - adding an active security layer on top of the architectural protections.
FAQ

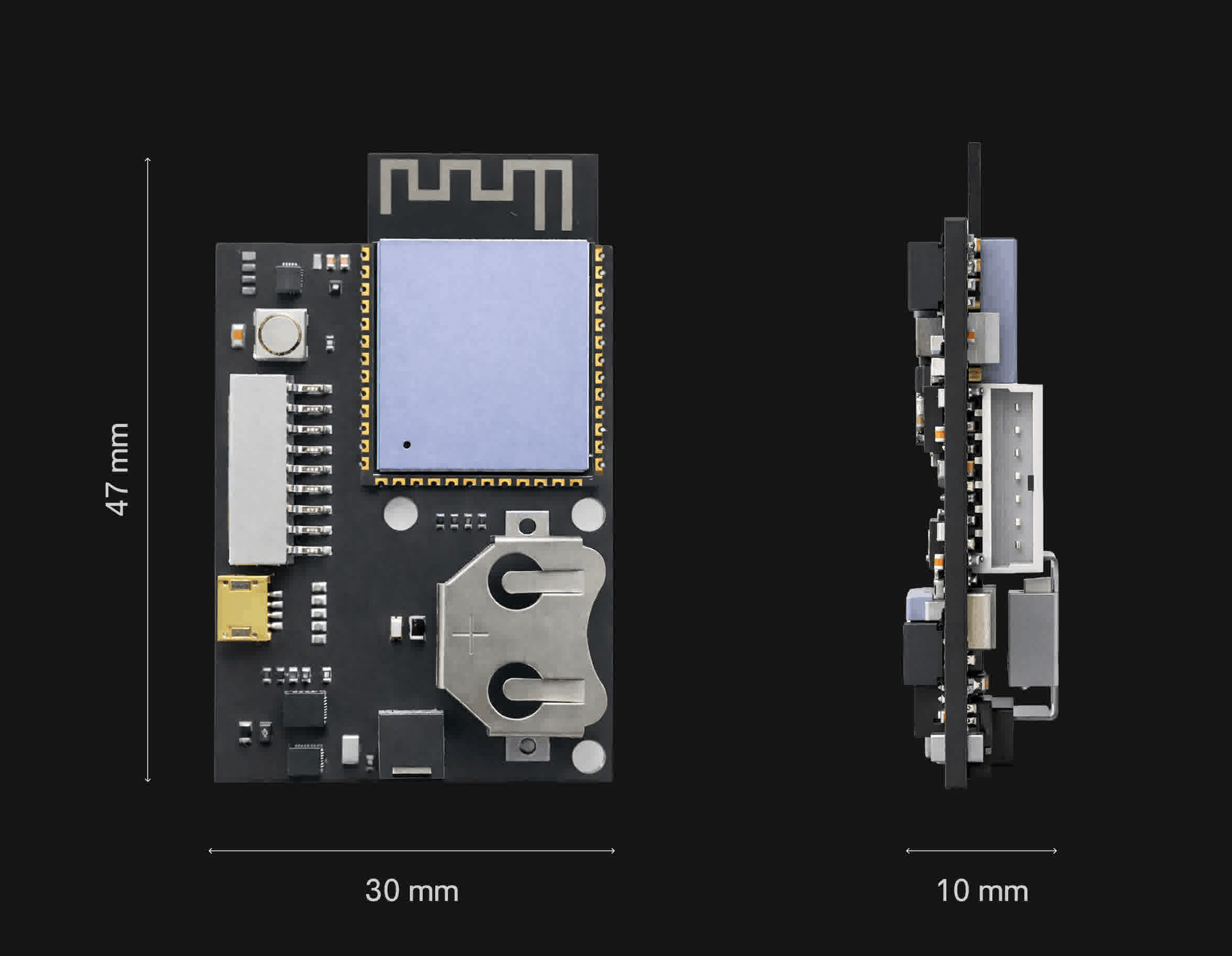

The module is compact and designed for straightforward mechanical and electrical integration - available with both board-to-board and field-wired interfaces. If your board already exposes a 3.3V–12V power rail and a TTL serial line, no PCB redesign is required. It carries CE and RoHS certification, reducing your compliance workload. Technical documentation and a reference design are available to accelerate integration.
The module supports Microsoft Azure IoT Hub and Amazon AWS IoT Core natively, communicating through the standard protocols defined by each platform - no proprietary protocol, no middleware layer required between the module and your existing backend.
It depends on the complexity of your product's communication architecture, but most integrations are completed within a few weeks. The reference design and technical documentation are structured to reduce the time from evaluation to first working prototype. An AI assistant is also available to support the implementation of the communication protocol.
Ermit handles module firmware updates and security patches autonomously through a dedicated management channel, completely separate from your application data. If you prefer full control, the entire management infrastructure can be transferred to and operated within your own environment.
The module operates on top of your cloud infrastructure - Azure IoT Hub or AWS IoT Core - which you own and control independently.
Reduce your compliance surface and documentation effort with an architecture built to meet requirements by design.

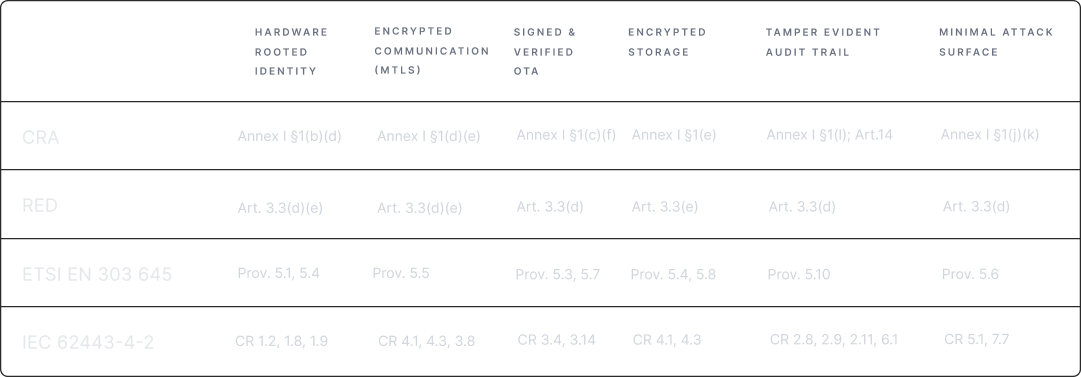

Integrating the Ermit Secure IoT Module reduces the compliance surface of your host device by delegating security-critical functions, hardware identity, certificate management, encrypted communications, and verified OTA, to a dedicated hardened component. This means your certification effort focuses on what your product does, not on rebuilding a security infrastructure. The architectural choices that satisfy CRA, RED, ETSI EN 303 645, and IEC 62443-4-2 are already in place, documented, traceable, and designed for assessment support from day one, so you have one team accountable for the whole product.
Cyber Resilient Act
The Secure IoT Module is what we built when we decided to solve connectivity security once, properly. Most connected products treat security as a late-stage integration problem. We knew that wasn't right, so we built a module that makes it a non-issue from the start, for any product that uses it.
Notification of Vulnerabilities & incidents. Applicable on product placed on the market before December 11th 2027
Applicable on new product placed on the market from December 11th 2027, or Product with substantial modification & placed on the market before.
Product cyber certified (EU type) before CRA must be re-certified (ex. CE RED)*
